Production of steel is one of the main types of building structures. Steel is characterized by high strength, light weight, rigidity, and it is for the construction of large span and high, especially suitable for building ultra-heavy, homogeneous and isotropic material is good, and ideal elastomer, the most general engineering mechanics of the basic assumptions; material plasticity, thoughness, and may have a larger deformation, can well withstand dynamic loads; short construction period; its high degree of industrialization, mechanization can be a high degree of specialized production; high precision, high efficiency, sealed good, it can be used for the construction of cylinders, thanks and transformers. The disadvantage is poor fire resistance and corrosion resistance. Mainly used for heavy load-bearing skeleton of the workshop, subject to dynamic loads of the house structure, shell structures, tall tower and mast structures, bridges and libranries and high-rise construction.
Product Information:
|
Main structure |
H-section steel |
Q345 steel H beam, Box column is also available |
|
Welding |
Automatic Submerged Arc Welding |
|
Rust removing |
Shot blasting |
|
surface processing |
twice primer and twice finish Alkyd Paint or hot dip galvanized |
|
High strength bolt |
Grade 10.9 |
|
Substructure |
Angle brace |
L50x4,Steel Q235,Process and painting |
|
Cross bracing |
Dia.20 round bar,Steel Q235, process and pre-galvanized |
|
Tie bar |
Dia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized |
|
Batter brace |
Dia.12 round bar,Steel Q235 process and pre-galvanized |
|
Ordinary bolt |
Galvanized bolt |
|
Roof |
Purlin |
C channel or Z channel,steel Q235, galvanized |
|
Roof panel |
(50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet |
|
Transparent skylight |
1.2mm FRP |
|
Accessories |
Sealant, self-tapping screw, etc. |
|
Edge cover |
Made of color steel sheet |
|
Gutter |
Made of steel sheet thickness 0.8mm, or PVC |
|
Rinspout |
PVC pipe |
|
Wall |
Purlin |
C channel or Z channel, steel Q235, galvanized |
|
Wall panel |
(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet |
|
Accessories |
Sealant, self-tapping screw etc |
|
Edge cover |
Made of GI color steel |
|

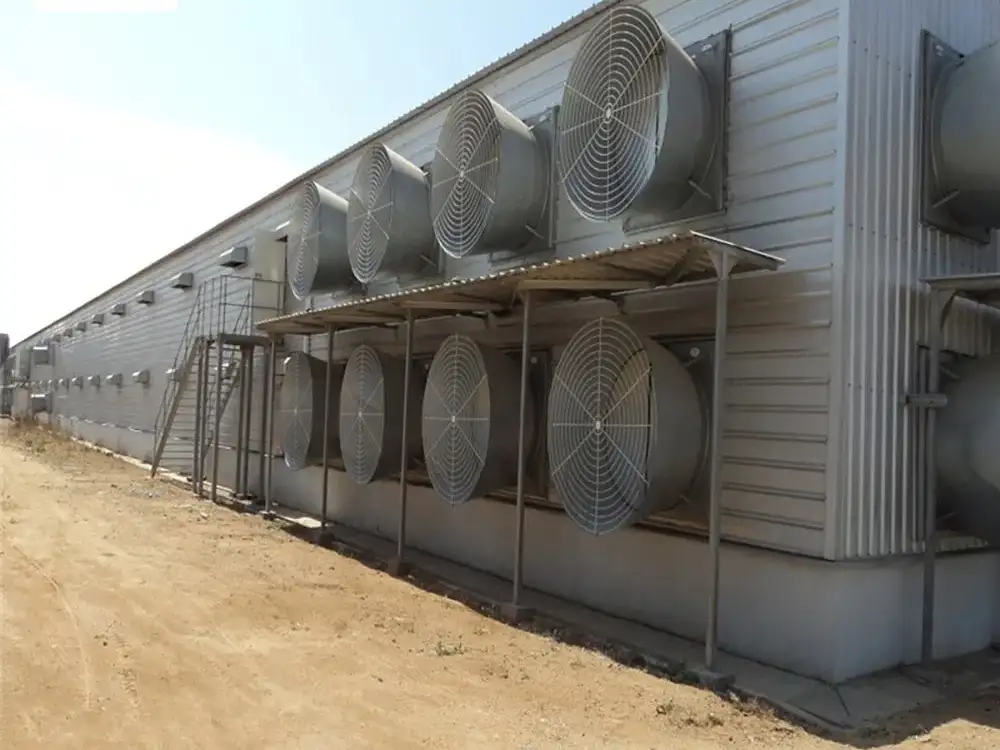

Ventilator |
|
unpowered axial-flow ventilator or monitor roof |
|
Door & window |
|
Electric rolling door/sliding door, PVC/Alu. alloy window |
|
Crane |
|
With or without crane, ranging from 5 tons to 20 |
Application Scope:
Workshop, Warehouse, Market, Hotel, Exhibition Hall, Office Building, Sports Stadium, Greenhouse, Gas Station,,4S Stores,Chicken Farm etc.
Advantages of Steel Structure:
1. Light weight, high strength, 20-50 years durable use
2. Cost saving, quick to assemble
3. Easy to move, materials can be recycled, environment friendly
4. Widely use, used to build factory, warehouse, office building, etc.
5. Structural flexibility, easy maintenance
6. Fire proof, wind resistance, snow resistance, earthquake resistance.
The Information You Need Provide:
1.Dimension: legth*width*height ___m*___m*___m
2.Brick Wall needed or not, if yes, ___m height
3.Door quantity & size & Location: __units, ___width(mm)*___height(mm)
4.Window quantity & size & Location: ___units, ___width(mm)*___height(mm)
5..Wind load, snow load, earthquake resistance level, fire proof leve
