Prefabricate House Technical Parameters
Material List For Light steel prefab villa
 Main Steel Frame
Foundation
1.  Model M26 bolt;
2.  Expansion anchor bolt;
3.  Tapping screws;
4.  Standard Specification-China- standard

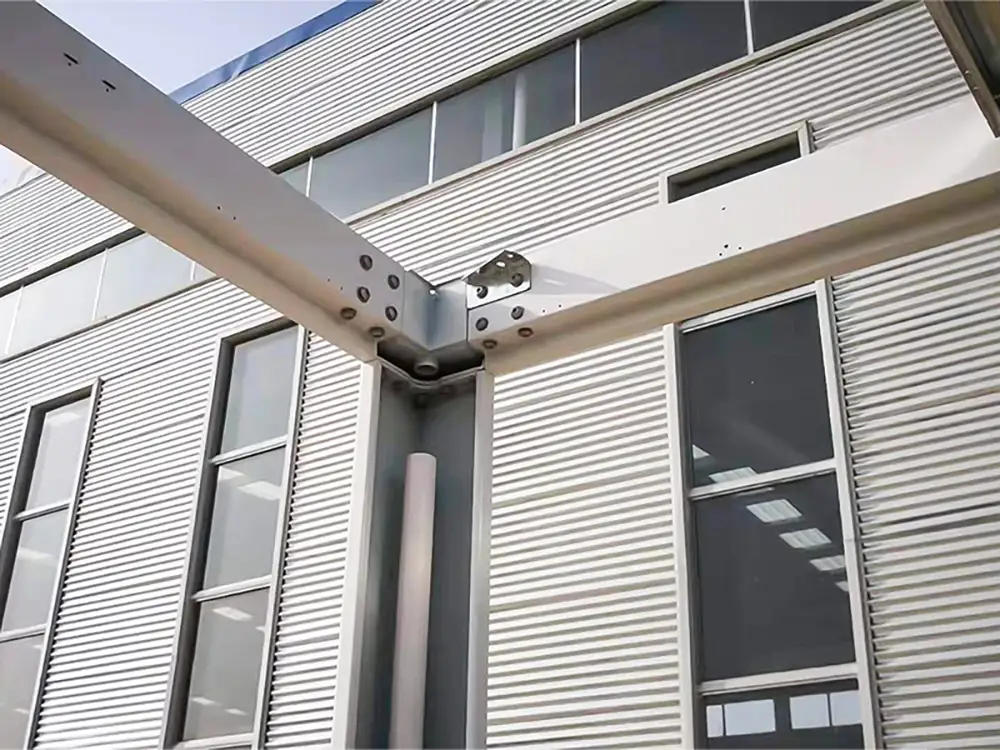

Steel structure frame
1. Galvanized Square tube steel and V model galvanized fastenings;
2. Steel name:square tube light steel, people called: Web steel;
3. Square tube Steel Standard Specification (40X40/60);
4. Every section frame is made up square tube with V fastenings : column,
     beam of roof, beam of floor , purline, stairs, and so on ;
5. Convenience installation and shipment ;

exterior and inner wall
1.  Out panel :Metallic decoration board/ Stone painting/ Cement fiber
2.  Cold region plus XPS board(1200mmX600);
3.  Moisture proof paper(1.5mx0.5mm);
4.  Square tube(heat insulation: filling the 150mm glass wool 12kg);
5.  OSB panel(Specification 1220x2440x9/10/12/15/18mm);
6.  Gypsum board(Specification 1200X3000/2400mm,Thinkness: 9/12mm );
7.  Interior wall use putty paint;

floor system
1.  The floor beams covered with prefabricated floor plate;
2.  Above the floor steel plate covered with a fine steel first;
3.  Second  doused with 80~120mm cement ;
4.  Ground of the top-level selection of ceramic tile or wood floor.       Choose ceramic tile for bathroom and kitchen;

ceiling
1.  Square tube structure(filling the 150mm glass wool 12kg);
2.  Choose Mineral Wool Board or Gypsum Board  for the living room and
        bedroom, PVC Board or Aluminum ceiling for Bathroom and kitchen;

roof
1.  Square tube roof structure;
2.  12~15mm OSB panel;
3.  3mm SBS modified asphalt waterproofing membrane;
4.  Asphalt tile / Colored steel roof tile;

Door
Entrance door  is Security doors(single door or double doors) . Bedroom's door is composite door. Bathroom's door is aluminum alloy door.


Window
 Windows:Plastic steel window or Bridge aluminum windows


Plumbing System and Rain Water Drainage System as per building design

The prefab container homes are created through a refined standard process that utilizes various materials including steel plate, sandwich board, bolt, aluminum parts, concrete, wood, ceramic tile, glass, paint, and others. These materials are transformed into a one-piece trailer that enables it to be mobile and easily recoverable while maintaining its safety, beauty, economy, shortcut, and high-efficiency characteristics. Moreover, aside from being environmentally friendly, these prefabricated steel structure container houses do not generate any waste or pollution. Its box-like feature allows it to be relocated effortlessly to any desired location. Our prefab container houses are features of sustainability and eco-friendliness, affordability and cost savings, design and customization, mobility and portability, efficiency and convenience. Buy Container Home From China Manufacturer at Competitive Prices (Container House Price). Contact Now!
