Prefab Houses for Accommodation Technical Parameters

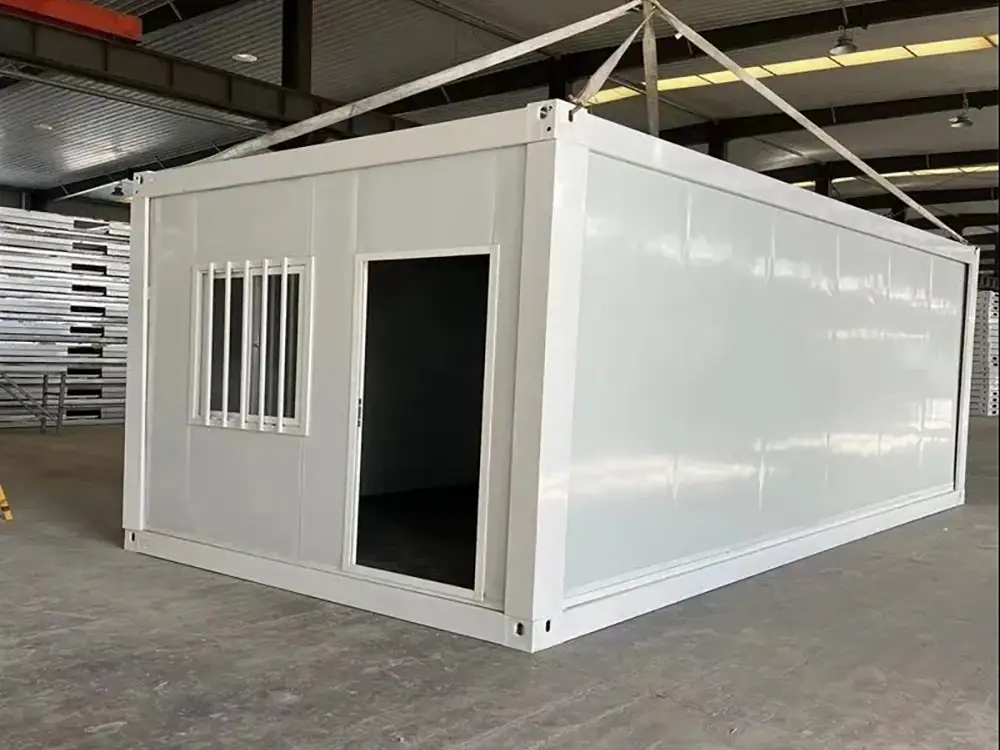

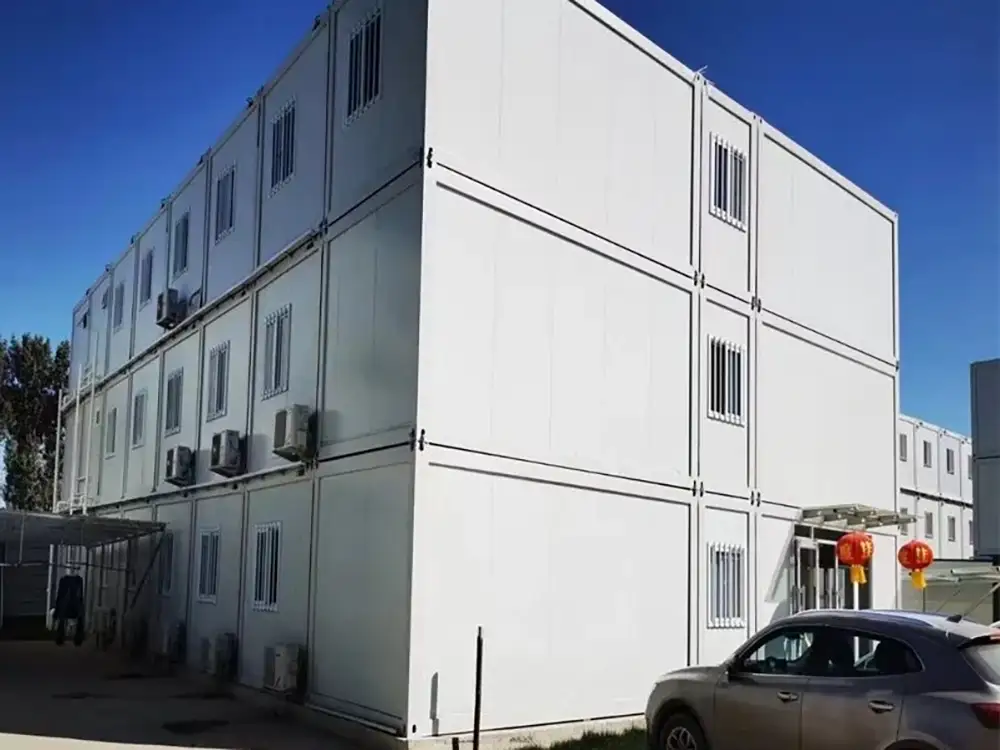

Prefabricated camp house is a Green economy building system, which is formed by the main structure (Square steel tube for column, C channel steel for roof turss and purlin), roof and wall system (using sandwich panel), door and window system. Because of its advantages, like fast production, fast installation, low cost, prefabricated camp house is widely used as labor camp, refugee camp, staff camp, mining camp, dormitory, accommodation house, toilet and shower building, laundry, kitchen and dining/mess/canteen hall, recreation hall, mosque/prayer hall, site office, clinic, guard house, etc..

Component Specification

Type With or without steel chassis Type one: without steel chassis, build on concrete strip foundation
Type two: with steel chassis, the building will be put on concrete blocks
Story One storey or two storey or three storey are available
Frame system Steel  column Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint
Steel roof truss C100*40*15*2.0, welding and galvanized
Roof and wall purlin C100*40*15*2.0, galvanized
Cross bracing Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
Chemical bolt M16, chemical bolt
Ordinary bolt 4.8S, galvanized
Steel chassis or 1st floor system Main beam HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
Secondary beam C100*40*15*2.0 galvanized
Floor structure board  18/20mm plywood and fiber cement board
Flooring PVC floor leather and ceramic tiles are available
Wall and Roof system Wall panel Sandwich panel: Rock wool, Glass wool, EPS, PU are available
Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available
Roof panel Sandwich panel: Rock wool, Glass wool, EPS, PU are available
Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available
Ceiling system Dry room 600*600*6mm gypsum board,with framework
Wet room 600*600*5mm calcium silicate board, with framework
Door and window system Door Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
Window PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing system Electric units Electric wire, conduit, socket, switch, light, distribution box
Sanitary units Shower, closestool, basin, water pipe

Advantages

1) Size is customized, design according to requirements.
2) Service life is up to 15 years.
3) Cost effective, the average price is from USD 60/sqm to USD 120/sqm.
4) Fast construction, from production to finishing installation, only need several months.
5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.
