Glass Laminate Sheet Technical Parameters

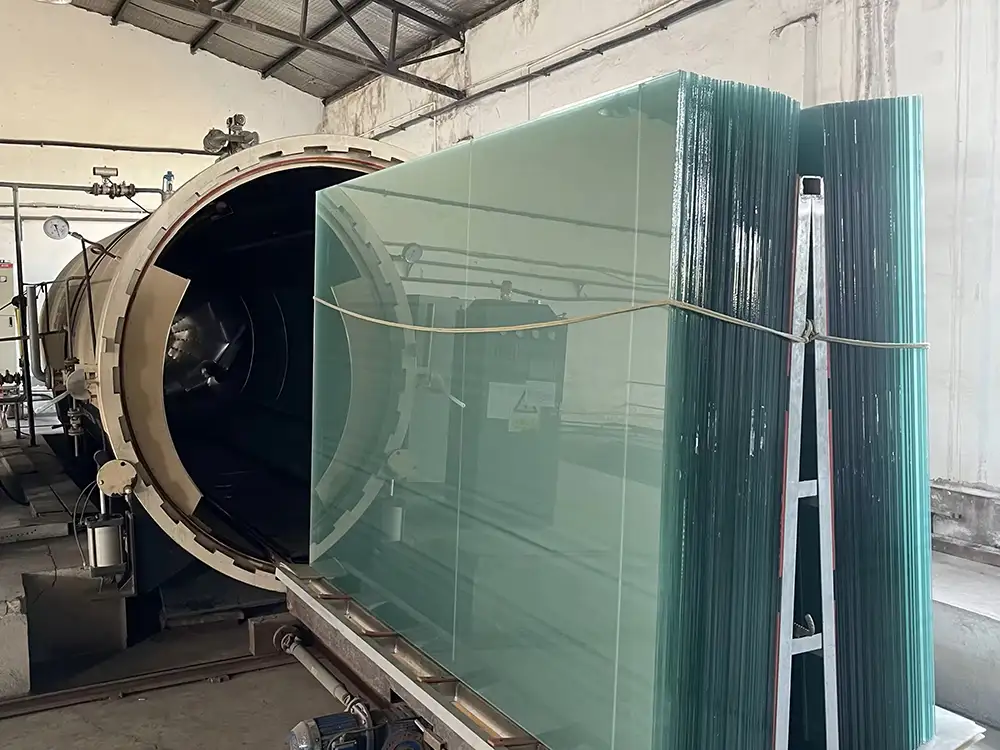

Laminated Tempered Glass is produced with two or more than two sheets of tempered laminated glass with one or more 0.38mm tempered laminated glass film are mounted on each other in a clean room. Then the sandwich is pre-strengthened via a controlled, high pressurized and industrial process. The 10mm tempered laminating glass process results in the tempered glass panels holding together in the event of breakage, reducing the risk of harm.
Tempered laminated glass Thickness 3+3mm, 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm with different thickness interlayer 0.38mm, 0.76mm, 1.52mm, etc., triple layer, four layer, five layer, etc.
Tempered laminated glass size Produce custom size as per customer’s demand, Max size could reach to 3300x12000mm
Tempered laminated composition Tempered glass+PVB/SGP/EVA film+ tempered glass
Tempered laminated Processing Cut to size, custom shape, polish edges, drill holes, cutouts, cut notches, etching, printing, sandblasting, safety corners, etc.
Quality Standard Meet ISO, CCC, SGCC ANSI Z97.1-2015, CE EN12150 EN12600 EN14449:2005, BS6206 etc. standard
Delivery Time Normally is 7-15 days, urgently order service is also available

 MILK WHITE LAMINATED GLASS            TRANSLUCENT LAMINATED GLASS
GLASS TICHKNESS 3mm,4mm,5mm,6mm,8mm,
10mm,12mm,15,,19mm or custom
PVB THICKNESS 0.38mm,0.76mm,1.14mm,
1.52mm or more

GLASS COLOR blue, green,pink,bronze,grey,clear,Frosted glass
PVB  COLOR milk white blue green,pink,bronze,grey,clear,
yellow,orange,red,black,,etc.
NORMAL SIZE 2440*1830,3300*2140,3300*2440 3660*2140,3660*2440mm
size can be made as customer need
  Laminated glass Laminated Glass is made up of two or more layers of glass permanently bonded together with an interlayer via a controlled, highly pressurised and industrial heating process. The lamination process results in the glass panels holding together in the event of breakage, reducing the risk of harm. Laminated Glass is classified as Grade A Safety Glass. There are several laminated glass types manufactured using different glass and interlay options that produce a variety of strength and security requirements. Features: 1) Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets. 2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads. 3) Create aesthetic sense to buildings: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects. 4) Sound control: PVB interlayer is an effective absorber of sound. 5)Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains from fading effect.
