Fast Construction Light Steel Villa Technical Parameters

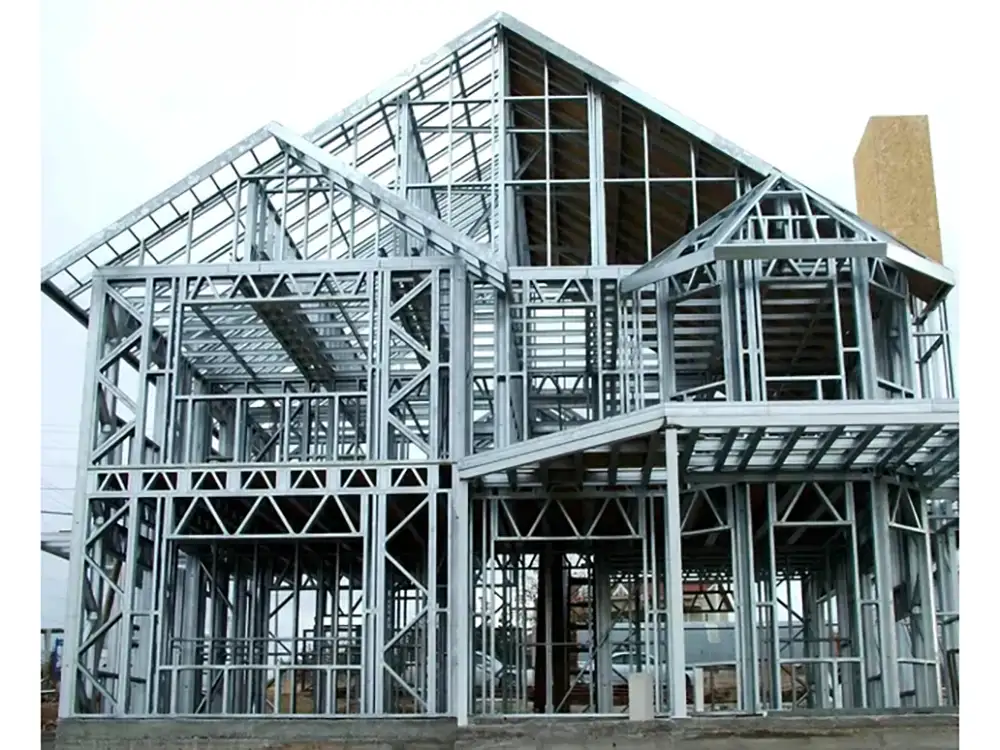

Light Steel Villa,industriallzed production,quick construction, little influence to construction by weather conditions. Light Steel Villa The mainbody bearing of low level cold-bending hollow steel section assembly type villa house system adopts cold-bending hollow steel section and structure plates to form rib plate type wall-body structure. This structure has very good integrity performance with light self-weight, and can resist over 7 grade of earthquake intensity and hurricanes of wind speed of 50meter/second.
Production Feature Introduction
Seismic Resistance: It can withstand a rare magnitude - 9 earthquake and is applicable to areas with a seismic intensity of over 8 degrees.
Durability: The lifespan of the main structure can reach over 70 years.
Fire Resistance: Depending on different designs, the fire - resistance time can range from 1 to 4 hours.
Sound Insulation: The sound insulation of the exterior wall can reach 65dB, and that of the interior wall can reach 45dB.
Thermal Insulation: The thermal resistance value of a 200 - mm - thick composite wall can reach 3.2m²K/W, which is 11 times that of a brick wall of the same thickness.
Environmental Friendliness: Steel structure materials can be 100% recycled, and most of the other supporting materials can also be recycled.
Energy Efficiency: By using new thermal - insulation and heat - insulating materials, it can save 65% of the energy required for heating and cooling compared to traditional buildings.
Usable Floor Area Ratio: Light steel integrated houses can increase the usable floor area by 5% - 13% compared to traditional buildings.
Construction Period: The standardized assembly operation of light steel structure residences is simple and fast, saving 2/3 of the construction period compared to traditional structures.
Certifications
ltems
Specifications
Name
Design manufacture steel structures for Light Steel Villa
Steel Frame
Square hollow section+ C section steel+ aluminum profile
Color
Customizable
Size
Customizable
Main Structure
Column
Q355/Q235 H-steel ,Box column is also available
Rafter, Beam and column
Q355/Q235 H- steel,Welded H steel, material grade: Q355B
Purlin brace
L steel: L50*4.0, material grade: Q235B
Casing
Dia .32*2.5,material grade:Q235B
Wall girt
C140*50*20*2.0,material grade:Q235B
Sub Structure
Angle brace
Q235B.L- steel
Cross bracing
Q235B round bar, L-steel
Tie bar
Q235B, round pipe
Batter brace
Q235B.Q345B
Roof System
Roof Purlin
C or Z shape, Steel purlin,0.45/0.5/0.6mm corrugate steel sheet
Down spout
PVC pipe
Steel fashing and cover
Steel sheet for roof ridge cap, gable wall end cover and corner cover
