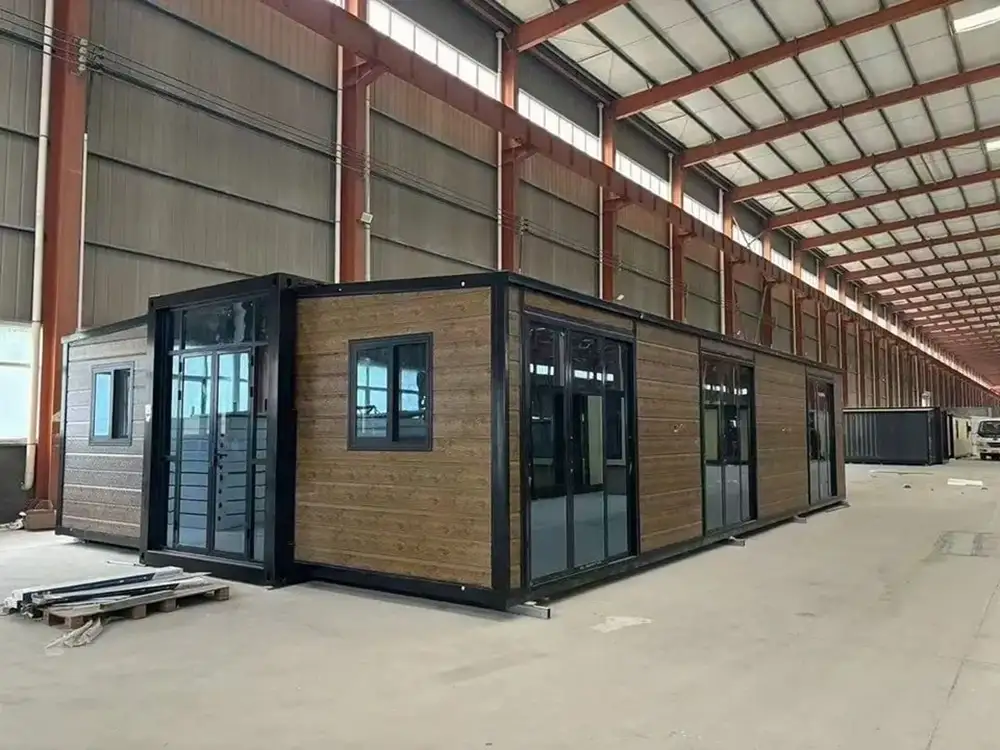

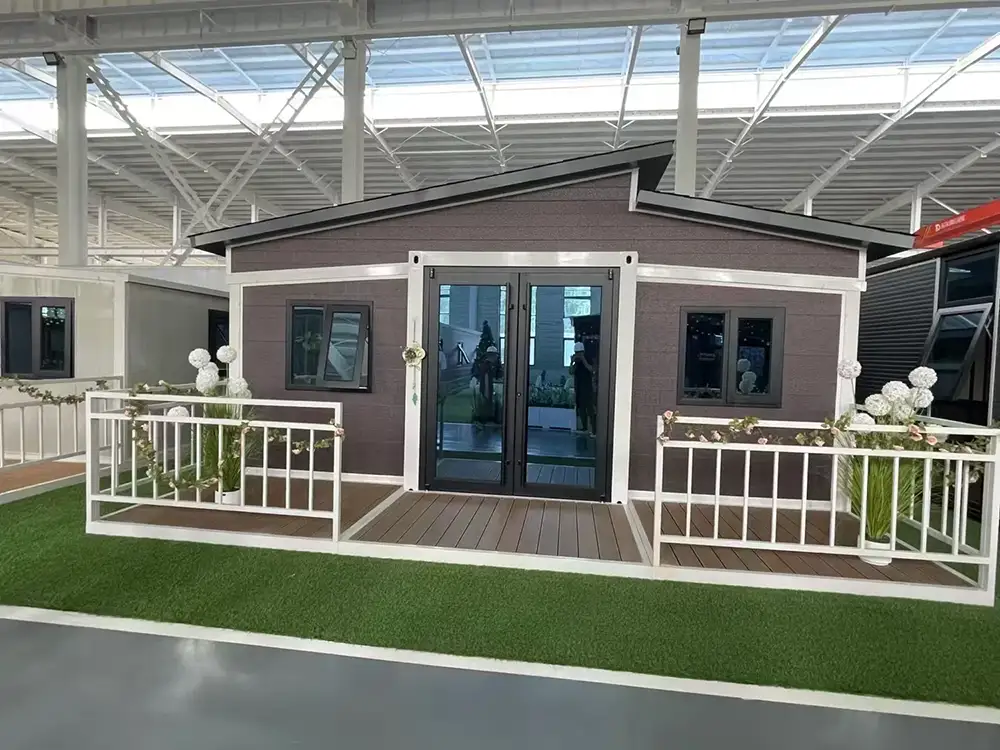

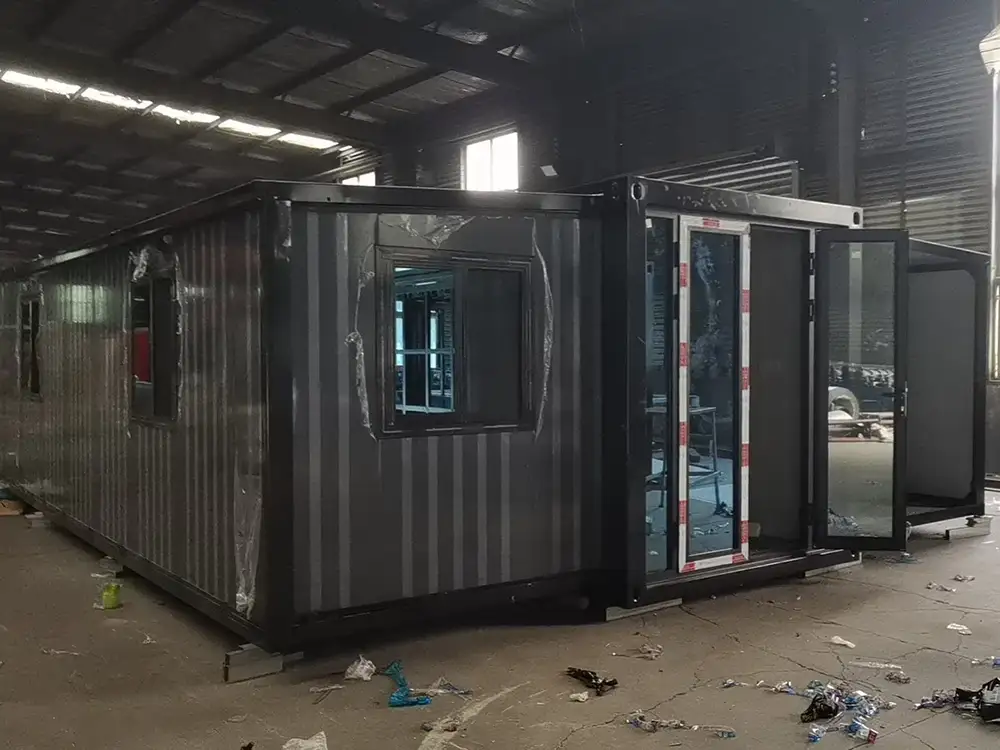

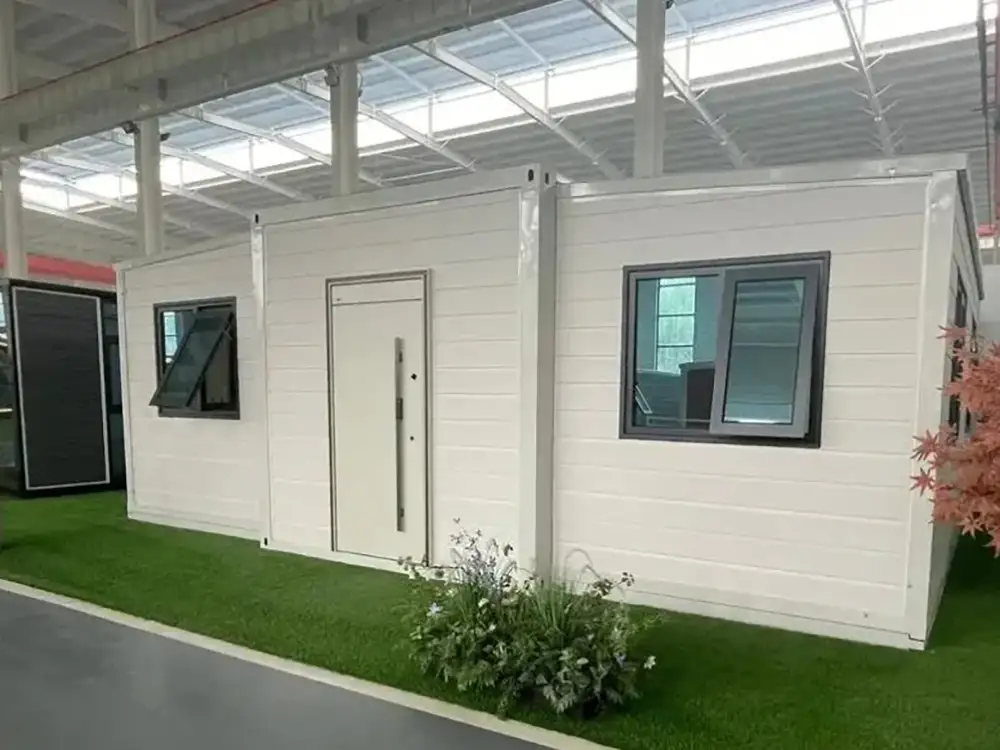

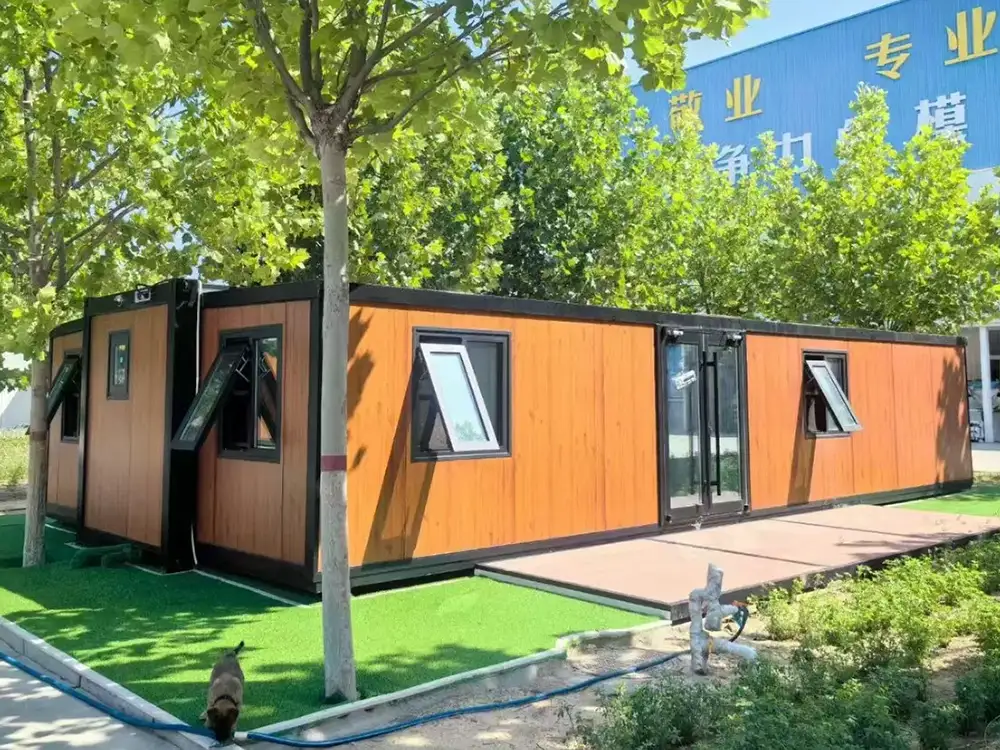

40 Feet Shipping Container House Technical Parameters
Detailed Specification


Specification 1) 20ft: 6055*2435*2896mm
2) 40ft: 12192*2435*2896mm
3) Roof Type: Flat roof with organized internal water draining design
4) Storey: ≤3
Design parameter 1) Life span: up to 20years
2) Floor Live load: 2.0KN/m2
3) Roof Live load: 0.5KN/m2
4) Wind load: 0.6KN/m2
5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
Wall panel 1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm
2) Exterior steel sheet (standard configuration): Corrugated 0.4mm       Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2
3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable
4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2
Roof system 1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel
2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection
3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.
4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.
5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
Corner pillar 1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.
2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation
Floor System 1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.
2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable.
3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.
4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3
5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color
Door & Window 1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm.
2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm
Electric system 1) Rated power: 5.0 KW, suggestion external power source ≤3 in series.
2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A,  Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.
3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.
Painting 1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.
2) Finishing paint:  Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)


Prev:20 Feet Shipping Container House
Next:Silicone Sealant
TAG:
Related Category:
40 Feet Shipping Container House China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China
You May Also Like
Related Products
Modern Modular House
Modern Modular House

Modern design furnished one bedroom mini modular homes house prices,Site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room,labor camp,hotel and so on ....

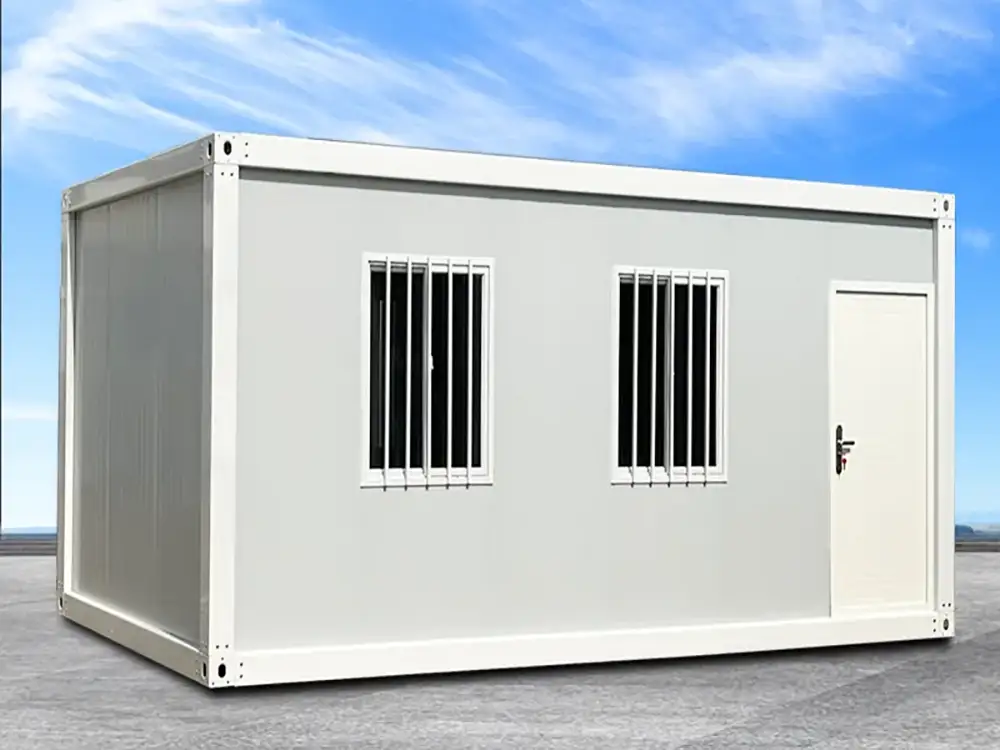

20 Feet Shipping Container House
20 Feet Shipping Container House

20 feet 40 feet shipping container house living sheds,Steel Fabricated House, prefabricated ethiopia shipping container office house...

Foldable Container Home
Foldable Container Home

New Design Modern Folding Prefab Houses/ Foldable Container House,Modular Flat Pack Waterproof Folding Container House Material: Sandwich Panel Usage: Warehouse, Villa, Dormitories...

Prefabricated House for Family
Prefabricated House for Family

Prefabricated House for Family,Structure: light steel as its main frame, which is safe and reliable; sandwich panels as its roof and wall boards, which is in attractive looks and beautiful decoration. Environmental protection and economized...

K Modular Mobile House
K Modular Mobile House

K Modular Mobile House recyclable construction engineering fast building prefab house, house is light steel frame,EPS sandwich panels for building enveloped materials, as as standard module for space series....

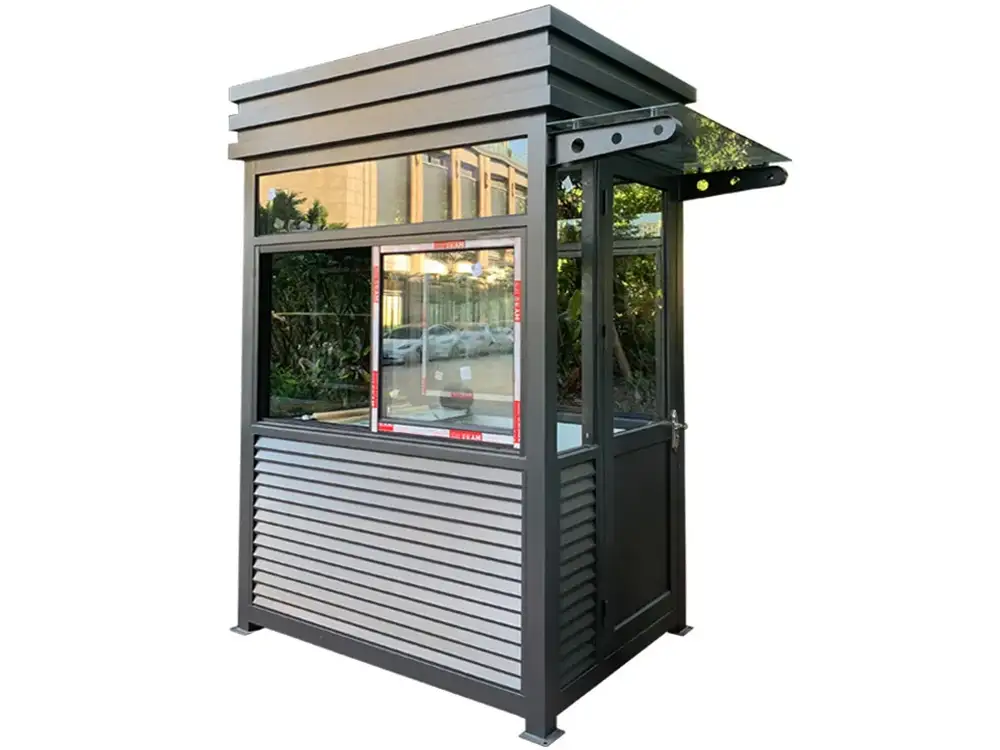

Guard House
Guard House

Prefabricated Portable Guard Room Sentry Box,Sentry Box,Guard House,Watch Box,New Design Steel Structure Sentry Box...

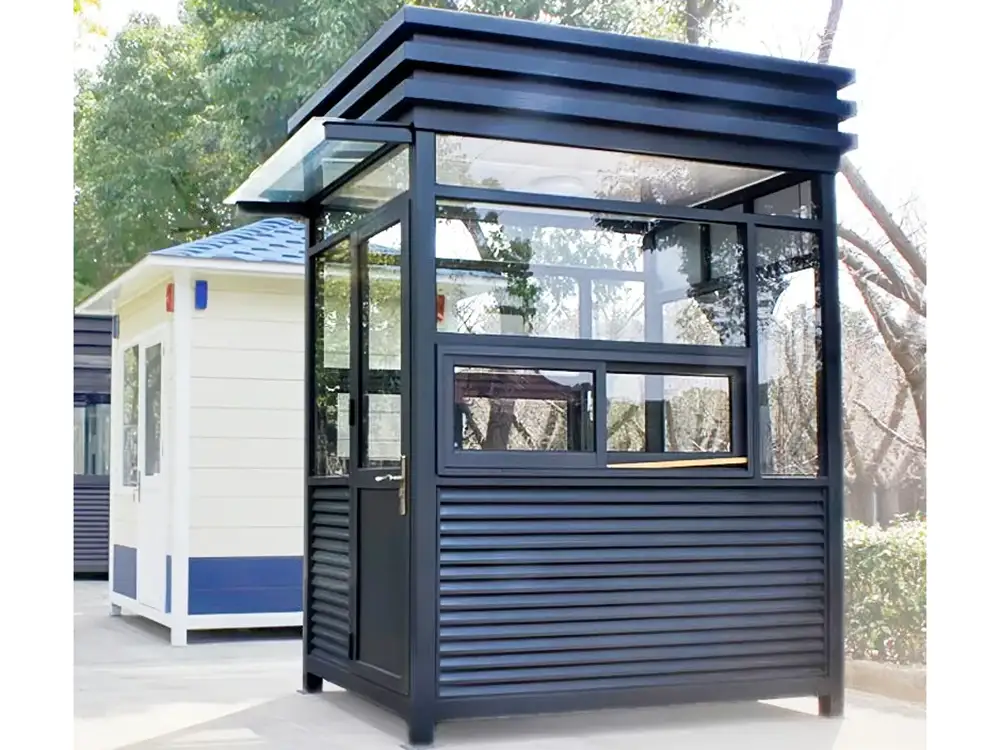

Sentry Box
